Residual Current Operated Circuit Breaker

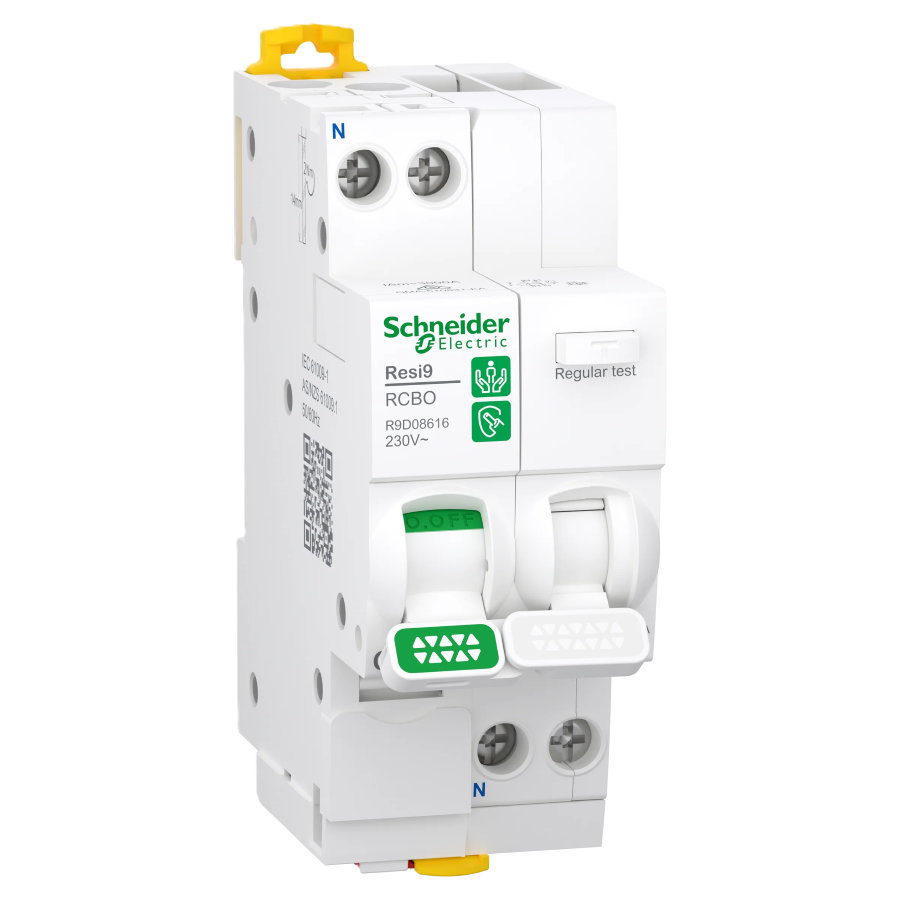

This circuit breaker protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. The Resi9 product is a residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A rated current (In) at 30°C conforming to AS/NZS 61009.1 standard and the C tripping curve.

• Breaking capacity (Icn) is up to 6000A at 230VAC with operating frequency of 50Hz to 60Hz.
• Earth leakage protection class is type A with a sensitivity of 30mA.
• Earth-leakage protection time delay is instantaneous.
• Fits most UK Caravans in place of UK version.
• Standard: Complies with IEC 61009-2-2, EN/IEC 61009-1 and AS/NZS 61009.1 standards.
• Rated current (In) 16A.
• Poles: 1P+N
• Protection Degree: IP20

WARNING
Must Be installed by Qualified Electricians
Please read users instructions before installation and application
